FDF Flange Series Solenoid Valve

FDF Flange Series Solenoid Valve

FDF series solenoid valves are used in the new compressor system developed by Copeland, which uses a flange to connect the compressor. It is available in high ambient temperature and medium temperature with long service life.

Technical parameters

  • Features
    • Low temperature rise of the coil, low energy consumption and reliable;
    • Long service life, up to 35,000,000 times;
  • General specifications
    • Applicable refrigerant: R22, R134a, R404A, R407A, R407C and R507 etc.;
    • Applicable medium temperature: +10??+146? (non-persistent);
    • Applicable ambient temperature: -30??+60??
    • Relative humidity: below 95% RH
  • Dimensions

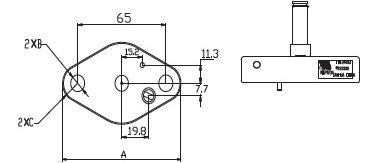

    Commercial Solenoid FDF Flange Series . Dimensions

    Model A B C
    FDF2A903-01 ?87? 10.30 R11.1
    FDF2A903-02 ?90? 13.47 R12.7
