Accumulator (Compressor)

Customized products Accumulator (Compressor)

Applicable for household air conditioner compressors, the receiver is installed in front of the compressor to separate refrigerant and refrigeration oil and impurities not completely gasified by evaporators. It has functions of gas-liquid separation, liquid storage, oil return and noise reduction to ensure that the compressor would not be damaged by fluid impact.

Technical parameters

  • Features
    • Corrosion resistance: finished with powder painting surviving 500 hours of salt spray test
    • Long service life: steel casing, more endurable
  • General specifications
    • Applicable refrigerant: CFC,HCFC, HFC etc.
    • Applicable medium temperature: -30ºC~+120ºC (-22°F~+240°F)
    • Applicable ambient temperature: -30ºC~ +65ºC (-22°F~+131°F)
    • Maximum working pressure: 4.8MPa
    • Certification: UL and CSA

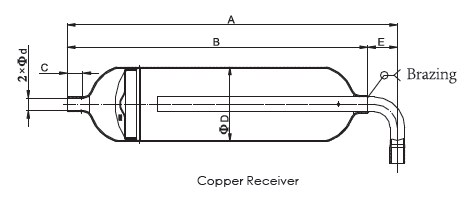

  • Dimensions

    Accumulator (Compressor) . Technical parameters.



    Model Dimensions Connection Type
    D mm B mm A mm C mm E mm d in
    KCY-CXX025 70~330 120~450 5~15 25~150 1/2, 1/4, 3/8 Solder connection
    KCY-CXX030 70~330 120~450 5~15 25~150 1/2, 1/4, 3/8
    KCY-CXX031 70~330 120~450 5~15 25~150 1/2, 1/4, 3/8
    KCY-CXX035 90~330 140~450 5~15 25~150 1/2, 1/4, 3/8
    KCY-CXX041 90~330 140~450 5~15 25~150 1/2, 1/4, 3/8
    KCY-CXX048 90~330 140~450 5~15 25~150 1/2, 1/4, 3/8
    KCY-CXX050 130~330 180~450 5~15 25~150 1/2, 1/4, 3/8
    KCY-CXX057 57,2 130~330 180~450 5~15 25~150 1/2, 1/4, 3/8

    Note:

    • The products listed are standard products which can also be customized.
