DSG Series - Liquid line Filter Drier with Sight Glass

DSG Series - Liquid line Filter Drier with Sight Glass DSG Series - Liquid line Filter Drier with Sight Glass

DSG Series liquid line filter drier/sight glass combination is a liquid line filter drier with a sight glass connected to the outlet side of the filter drier are used in refrigeration system with unidirectional flow to absorb moisture in the system and to filter out the impurities. Observe property changes of the refrigerant (liquid / vapor) and indicate the moisture level by the sight glass as well

Technical parameters

  • Features
    • Highly efficient in moisture absorption, filtering impurity, paint remains and mud

    removal

    • Durable and solid filter cores
    • Filtering fineness: 20μm
    • Corrosion resistant painting survives salt spray test of 500 hours
    • Sight glass with new annular humidity color indicator to realize high precision and full port passage with low pressure drop
    • Compact unit: reduce customer installation time and reduce potential leakage risk
  • General Specification
    • Applicable for all common HFC, HFO refrigerants such as: R134a, R404A, R407A/F, R407C, R410A, R448A, R449A, R450A, R452A, R513A, R507A
    • Ambient temperature min./max.: -30°C / +55°C
    • Medium temperature TS min./max.: -30°C / +80°C
    • Max. operating pressure PS max.: 4,6 MPa
    • Installation position:  - Flow direction corresponds to the arrow

                                                    - Preferably installed in liquid line

    • Certifications: UL/CSA and PED declaration



    Technical Parameters

    Desiccant Selection Table



    Medium type

    100% 3Å desiccant

    Refrigerant

    HFC

    Applicable

    HFO

    Applicable

    Oil

    Mineral oil or AB

    Applicable

    Pure POE or PAG

    Applicable

    POE or PAG with additive

    Applicable



  • Model Designation Legend

    Model Designation Legend

    1

    Product Code

    Product Series

    DSG

    Indicates unidirectional filter drier with Sight glass

    2

    Filter Core

    Structure and Material

    B

    Compact core, 100%3Å desiccant

    3

    Internal Volume¹

    Expressed in [ inch3 ]

    Expressed in [ cm3 ]

    05

    5

    82

    08

    8

    131

    16

    16

    262

    4

    Connection Size

    Pos. 5 shows "4": SAE Flare [inch]

    02

    1/4

    03

    3/8

    04

    1/2

    5

    Pipe Connection

    Type

    4

    SAE flare connections

    6

    Version Number

    Description

    002

    Series number





    Model Designation Example:

    Position Number

    According to Model Designation Legend

    1

    2

    3

    4

    5

    6

    DSG

    B

    05

    02

    4

    002

    Unidirectional filter drier & sight glass assembly

    DSG

    B

    05

    02

    4

    002

    Solid filter core with 100% 3Å desiccant

    DSG

    B

    05

    02

    4

    002

    5 inch3 internal volume

    DSG

    B

    05

    02

    4

    002

    When Pos. 5 is “4”: SAE flare connection size 1/4”

    DSG

    B

    05

    02

    4

    002

    SAE flare connection

    DSG

    B

    05

    02

    4

    002

    Series number

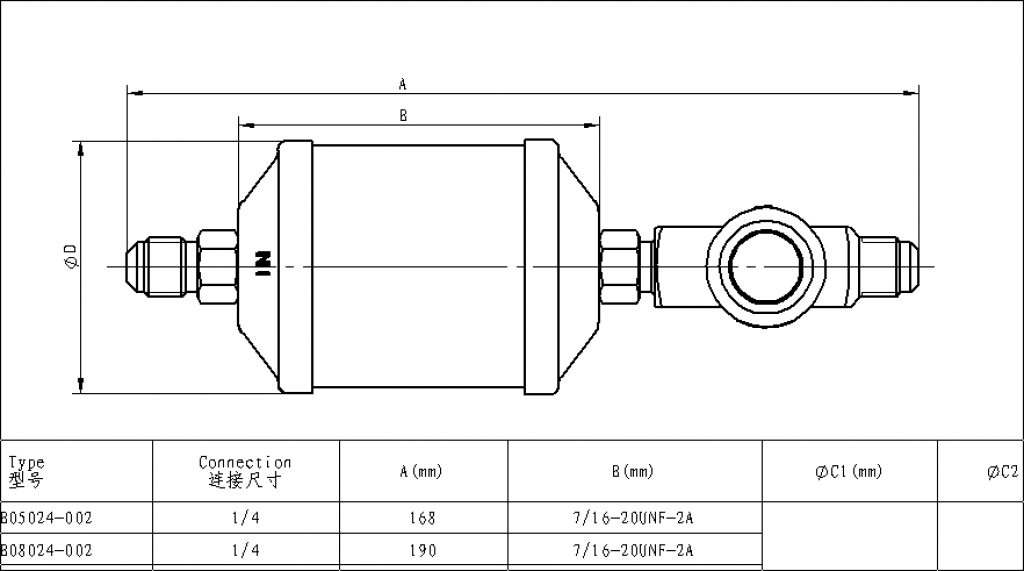

  • Version with male/male Flare connections

    Version with male/male Flare connections

    Series

    Model

    Part Number1)

    Nominal Volume

    Connection

    Dimensions & Weight

    PED

     Category²⁾

    SAE Flare

    ØD

    A

    B

    Weight

    [inch³]

    [cm3]

    [inch]

    [mm]

    [mm]

    [mm]

    [ g ]

    DSGB 052

    DSG-B05 024-002

    10221000102

    5

    82

    1/4

    69

    168

    76

    620

    Art. 4.3

    DSGB 082

    DSG-B08 024-002

    10221000202

    8

    131

    1/4

    69

    190

    89

    640

    Art. 4.3

    DSGB 083

    DSG-B08 034-002

    10221000302

    8

    131

    3/8

    69

    214

    89

    640

    Art. 4.3

    DSGB 163

    DSG-B16 034-002

    10221000402

    16

    262

    3/8

    69

    234

    118

    700

    Art. 4.3

    DSGB 164

    DSG-B16 044-002

    10221000502

    16

    262

    1/2

    69

    245

    118

    700

    Art. 4.3



    Note:

    1. Available also as industrial package. Contact Sanhua for more details.

    2) PED Directive 2014/68/EU

  • Selection Table

    Selection Table

    Series

    Capacity¹⁾ [kW]

    Moisture Absorption (gram H2O)

    R134a

    R404A

    R22

    R407C²⁾

    R410A

    R134a

    R404A

    R407C²⁾

    R22

    R507A

    R410A

    R507A

    75°F

    125°F

    75°F

    125°F

    75°F

    125°F

    75°F

    125°F

    23,9°C

    51,7°C

    23,9°C

    51,7°C

    23,9°C

    51,7°C

    23,9°C

    51,7°C

    DSGB 052

    8,4

    6,0

    8,4

    8,4

    8,4

    11,6

    10,9

    10,9

    8,9

    10,9

    9,5

    11,4

    9,7

    DSGB 082

    8,4

    6,0

    8,4

    8,4

    8,4

    14,8

    14,2

    16,3

    13,4

    14,8

    13,0

    15,5

    13,1

    DSGB 083

    25,0

    17,6

    25,3

    25,0

    25,7

    14,8

    14,2

    16,3

    13,4

    14,8

    13,0

    15,5

    13,1

    DSGB 163

    25,7

    17,9

    26,0

    26,0

    26,4

    20,6

    19,5

    33,2

    18,3

    20,6

    17,6

    20,9

    17,7

    DSGB 164

    32,4

    22,9

    33,1

    32,7

    33,8

    20,6

    19,5

    33,2

    18,3

    20,6

    17,6

    20,9

    17,7



    Note:

    1. the above data is based on clean system at ideal conditions; with impurities accumulated in the filter, the capacity may decrease
    2. R407C capacity is based on dew point conditions





    Selection Formulas:

    Filter Driers for liquid line are manufactured in compliance with ARI Standard 710. Maximum flow rate of liquid refrigerant at a differential pressure of 0,07bar (1psi) is indicated by kW (ton) which is based on the temperature of liquid refrigerant 30°C (86°F), the evaporating temperature of

     -15°C (5°F) and the following mass flow:



    •             0,40 kg/min/kW (3.1 lb/min/ton)    R134a

    •             0,53 kg/min/kW (4.1 lb/min/ton) R404A, R507A

    •             0,39 kg/min/kW (3.0 lb/min/ton) R22, R407C

    •             0,36 kg/min/kW (2.8 lb/min/ton) R410A



    Note: Data on water absorption is based on the following EPD (method: ASHRAE Standard 63.1):



    •             60ppm R22

    •             50ppm R134a

    •             50ppm R404A

    •             50ppm R407C

    •             50ppm R410A

    •             50ppm R507A



    Moisture Indication Limits :

    Refrigerant

    Moisture Content 25°C: PPM

    Green/Dry

    Middle Color

    Yellow/Wet

    R22

    100

    100200

    200

    R134a
