D series accumulator is installed between the suction port of the refrigerating system compressors and evaporator to separate gas and fluid, store fluid, return oil and filter.

Technical parameters

  • Features
    • Inlet and outlet are made of copper tubes
    • Air guiding part direct the refrigerant toward the wall which form a slipstream to make the refrigerant expand quickly and slow the flow to let the liquid drop down. This effectively separates the liquid and gas.
    • The U tube design guarantee a max flow of refrigerant and stop little lubrication oil. The inlet of U tube is behind air guiding part which can prevent the liquid from entering compressor. At the same time, it can change the direction of refrigerant to completely separate the liquid and gas.
    • The balancing hole in the upper U tube can effectively eliminate the siphon caused the restart of system so as to avoid excessive liquid entering compressor.
    • The oil return hole is matching the system capacity to optimize the flow of liquid refrigerant and lubrication oil into compressor.
    • Connection tube, U tube and volume of accumulator is designed based on the basic demand of Heat pump system including safety store capacity (vs. total capacity) ; protective flow control back to compressor allows a proper and reliable liquid refrigerant and lubrication oil back to compressor. This combination is to achieve a minimum pressure drop and largest refrigerant capacity.
    • Powder coated surface can survive 500hours of salt spray test
  • General specifications
    • Applicable refrigerant: CFC, HCFC, HFC etc.
    • Applicable medium temperature: -30??+120??-22°F?+240°F?
    • Applicable ambient temperature: -35??+55??-22°F?+131°F?
    • Maximum working pressure: 2.5MPa (362.5Psig)
    • Certification: UL, CSA and PED
  • Technical Parameters

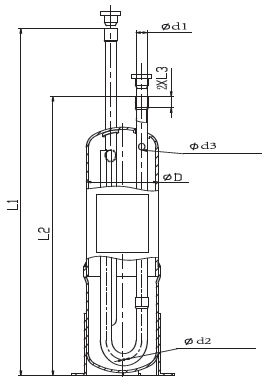

    Accumulators M Series . Dimensions



    Model L1 mm L2 mm D mm L3 mm d1 mm d2 mm d3 mm
    ACM-M00082-022 360.5 290 80.4 12 12.8 2 7
    ACM-M00114-010 486.2 486.2 114.5 15 19.2 1.5 6
    ACM-M00082-021 566 566 81.5 15 15.98 1.7 10
    ACM-M00105-001 271.5 271.5 109.6 15 17.9/16 2 10
    ACM-M00105-002 401.5 401.5 109.6 15 19.3/17.05 2 10
    ACM-M00127-021 420 420 127 15 19.2 1.2 1.5
    ACM-M00127-022 355 355 127 15 19.2 1.2 1.5
    ACM-M00219-010 745 745 219 20 25.6/22.4 1.6 /

    Note:

    • The products listed are standard products which can also be customized.
