Pressure Vessel Y Series

Customized products Pressure Vessel Y Series


Technical parameters

  • Features
    • The design, manufacturing and inspection is based on NB/T 47012 and TSG R0004 standard
    • The welding is governed by JB/T 4709
    • The inspection of welding line is governed by Grade II in JB/T 4730.2 with x-ray.
    • The pressure test is following NB/T 47012
  • General specifications
    • Type of the vessel: D2
    • Maximum operating pressure: 10 MPa
    • Material of the main pressure parts: Carbon Steel and stainless steel
    • Applicable refrigerant: as per customer
    • Diameter range of body:? 150??700 mm
    • Maximum length of the product: 4000 mm
  • Technical parameters

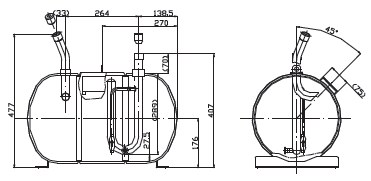

    Pressure Vessel Y Series . Technical parameters.

    Pressure Vessel Y Series . Technical parameters.

    Note:

    • The products listed are standard products which can also be customized.
