Check Valve Float Type Series

Customized products Check Valve Float Type Series

Float type check valves are used in air conditioning system in shunt connection with capillary tubes to control the forward and reverse flow of refrigerant and make refrigerant flow in a specified direction.

Technical parameters

  • Features
    • Good sealing performance, stable structure: using high quality engineering plastic valve core
    • Small flow resistance, big flow rate
  • General specifications
    • Applicable refrigerant: R22, R407C, R410A etc.
    • Applicable medium temperature: -30ºC ~ +120ºC
    • Maximum working pressure: 4.2MPa

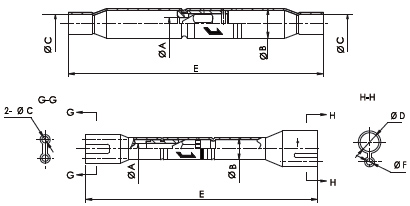

  • Dimensions

    Check Valve Float Type Series . Dimensions



    Model Dimensions mm
    A B C D/F E
    YCV3 3 9.52 3.18 3.18 100
    6.35 6.35
    YCV5 5 12.7 9.52 9.52 110
    12.7 12.7
    YCV8 8 19.05 12.7 12.7 150
    15.88 15.88
    YCV11 11 22.2 15.88 15.88 160
    19.05 19.05
    YCV14 14 28 19.05 19.05
    22.2 22.2
    CV/CAV 4.8 9.52 2.7 6.0/3.1 100
    2.9 6.5/2.7
    3.1 6.5/2.9
    3.3 8.1/2.7
    3.5 8.1/3.3
Download icon

Download Full Technical Information

Need even more detail or going offline? Find here all the technical specifications and product data.

Datasheet
